Request reviewers with Pickaroo

We have a collection of GitHub Actions that can be used to implement common Workflows to improve the efficiency of your projects. Alongside these Actions are also pre-configured Workflows that implement the most common of these, for your convenience.

View the innovation-shared-actions repository (internal).

Pickaroo reviewers workflow

A common workflow at the office is to request a couple random reviews from engineers that are part of the broader initiative (i.e. ResX or BizX), but are external to the given project. This workflow automates that process and sends a Slack notification to a given channel, tagging the selected reviewers.

How it works

The Pickaroo Reviewers workflow provides a complete solution for automated PR review assignment:

1. Randomly selects reviewers from specified GitHub teams and/or individual users and assigns them to the PR.
   • in addition to the exclude filters, it filters out any potential reviewers whose slack status shows as Sick, OOO, or on leave.
2. Maps the selected reviewers to their Slack user id’s so they can be tagged in a Slack message.
3. Sends a formatted Slack message of the PR details, and mentions the reviewers in a threaded message.
   • supports re-selecting additional reviewers on subsequent runs and tagging new reviewers in the same thread.
4. Conveniently removes any labels that were added to the PR in in order to trigger the workflow run
5. Supports a show parameter (see our guidance on Ship/Show/Ask) to simply notify the given channel and skip selecting reviewers.

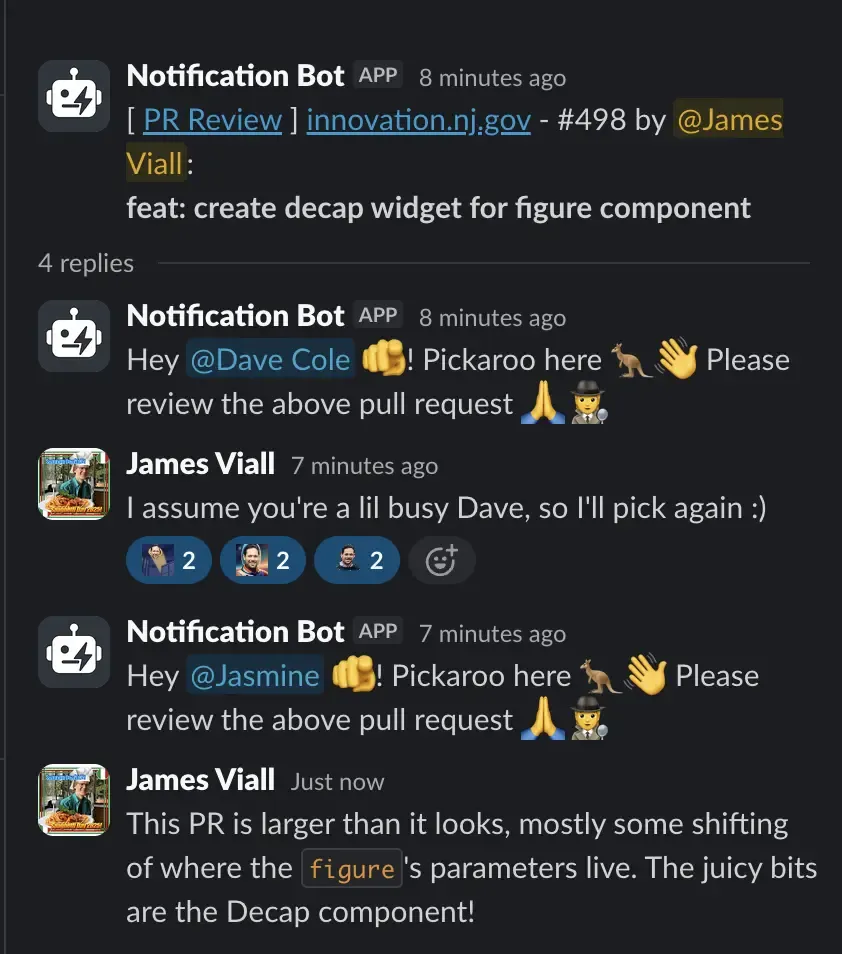

The results look something like this:

Requirements

Install the OOI Pull Request GitHub App

• Install the OOI Pull Request Github App in your repository. This might require creating a Tech-Ops ticket!

Repo must be in the same organization

This workflow consumes organization-level secrets. GitHub only allows access to shared workflow secrets if the calling repository is in the same GitHub org.

Add the Slack notification bot to your Slack channel

Slack will block messages unless the bot is a member of the channel.

To add the bot:

1. Open the Slack channel
2. Add “Notification Bot” to the channel
3. Ensure the bot appears in the channel’s integrations list

Adding your GitHub username to your Slack profile

In order to mention the author and any assigned reviewers in a Slack message, Pickaroo needs to be able to map a Slack user to a GitHub user. This is achieved by everyone either:

• Populating the GitHub Username field of your Slack profile with your username
• Adding your GitHub username with a prefix to the Name Pronunciation field of your Slack Profile (this is a workaround for Multi-Channel guests) e.g.
  • "JAYN DOH" gh: jane-doe
  • Github: superman99 "klahrk kent"

Required secrets

The workflow expects these secrets (already configured at the organization level):

• OOI_PULL_REQUEST_APP - Private key for the GitHub App
• SLACK_OAUTH_TOKEN - Slack OAuth token for sending messages

Note

When using the Pickaroo workflow in a workflow of your own, be sure to specify secrets: inherit for each job that uses Pickaroo. See the example below.

Inputs

Name	Required	Type	Description
include_teams	No	string	The github teams to pick reviewers from (space delimited) Must be a New Jersey GitHub Team
exclude_teams	No	string	The github teams to exclude reviewers from (space delimited)
include_users	No	string	Individual GitHub usernames to include (space delimited)
exclude_users	No	string	Individual GitHub usernames to exclude (space delimited)
number_of_reviewers	No	number	The number of reviewers to select, defaults to 1
number_of_repicks	No	number	The number of reviewers to select on subsequent runs of pickaroo, defaults to 1
show	No	boolean	If true, only post a Slack message without selecting reviewers
channel_id	Yes	string	The Slack Channel ID to notify

Using this workflow in your repository

Create a new workflow file, e.g. .github/workflows/request-reviewers.yml. You likely don’t want to auto-request reviewers for every pull request, and especially not every update, so you’ll want to create a workflow separate from your primary ‘CI’ workflow, and trigger it based on labels:

name: Pickaroo Reviewers

on:
  pull_request:
    types: ["labeled"]

jobs:
  pr-review:
    if: contains(github.event.pull_request.labels.*.name, 'pr-review')
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit # required because the underlying workflow accesses org secrets
    permissions: {} # we're not using the default GITHUB_TOKEN
    with:
      include_teams: "innovation-engineering"
      exclude_teams: "my-project-team some-other-team" # multiple items are space-delimited
      include_users: "specific-user another-user"
      exclude_users: "dhcole"
      number_of_reviewers: 2
      channel_id: "C09Q34G9HMX" #required
  pr-show:
    if: contains(github.event.pull_request.labels.*.name, 'pr-show')
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit # required
    permissions: {}
    with:
      show: true
      channel_id: "C09Q34G9HMX" # required

In the above example, when a PR receives a pr-review label, it will use Pickaroo to select 2 random reviewers and notify the given Slack channel. When a PR receives a pr-show label, Pickaroo will just notify the Slack channel and skip selecting reviewers thanks to the show parameter.

Other Recipes

Multiple rounds of picking

A common workflow is selecting one random reviewer from a project’s team and an additional reviewer from a broader cross-project group. You can achieve this by composing two separate Pickaroo jobs together and leveraging the number_of_repicks parameter.

jobs:
  request-project-reviewers:
    if: ${{ github.event.label.name == 'pr-review' }}
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit
    permissions: {}
    with:
      include_users: "timwright12 jviall aloverso"
      number_of_reviewers: 1
      number_of_repicks: 0 # never repick
      channel_id: C03C7NHK9B4 # engineering-all

  request-initiative-reviewers:
    if: ${{ github.event.label.name == 'pr-review' }} # second job, same label
    needs: request-project-reviewers # avoid a race between jobs
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit
    permissions: {}
    with:
      include_teams: "innovation-engineering" exclude_users: "dhcole gamorgana"
      # number_of_reviewers: 2 -- has no effect, see below
      number_of_repicks: 2 # since this always runs second, it's always a re-pick
      channel_id: C03C7NHK9B4 # engineering-all

Always picking the same reviewers

Some times you don’t want to randomly select reviewers be it from an internal or external team—you want the same reviewers every single time. Some teams achieve this by using CODEOWNERS, but depending on what’s ideal for your team you may prefer using Pickaroo to also benefit from the Slack notification. This can be done by simply specifying a number_of_reviewers that is equal to or greater than the number of people there is to pick from:

jobs:
  request-project-reviewers:
    if: ${{ github.event.label.name == 'pr-review' }}
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit
    permissions: {}
    with:
      include_users: "timwright12 jviall aloverso"
      number_of_reviewers: 3 # always assign these three users
      channel_id: C03C7NHK9B4

Or if you’re using include_teams

jobs:
  request-project-reviewers:
    if: ${{ github.event.label.name == 'pr-review' }}
    uses: newjersey/innovation-shared-actions/.github/workflows/pickaroo.yml@main
    secrets: inherit
    permissions: {}
    with:
      include_teams: "innovation-ccm"
      number_of_reviewers: 5 # there are 5 users on the innovation-ccm team
      channel_id: C03C7NHK9B4

Additional PR labels

You can always create as many additional jobs triggered on different PR labels to run Pickaroo with different parameters if your team so desires!

Pickaroo action

For more complex workflows or custom integrations, you can use the underlying Pickaroo action directly. This gives you control over the reviewer selection process, however this isn’t recommended as there are many other features of the Pickaroo workflow other than just review selection that you’ll miss out on and will have to setup manually, and then you’ll be stuck with maintaining your own implementation. If none of the above recipe’s fit your needs, suggest an improvement in #engineering-all!

How it works

The Pickaroo action handles the core reviewer selection logic:

1. It creates a combined list of potential reviewers that are members of the included teams / users, and omits users that are part of the excluded teams/members, authored the PR, or have already had a review requested.
2. Optionally also filters out users based on their slack statuses of OOO, sick, or on leave.
3. Randomly selects the specified number of reviewers
4. Adds them as requested reviewers to the pull request
5. Outputs the selected reviewers for use in subsequent workflow steps

Requirements

GitHub Token with proper permissions

You’ll need a GitHub token with:

• org:teams:read permissions (to read team memberships)
• repo:pull_requests:write permissions (to assign reviewers)

This is typically provided by the OOI Pull Request GitHub App which, just as with the above workflow, you’ll need installed in your repository.

Inputs

Name	Required	Type	Description
include_teams	No	string	The github teams to pick reviewers from (space delimited)
exclude_teams	No	string	The github teams to exclude reviewers from (space delimited)
include_users	No	string	Individual GitHub usernames to include (space delimited)
exclude_users	No	string	Individual GitHub usernames to exclude (space delimited)
number_of_reviewers	No	string	The number of reviewers to select, defaults to “1”
token	Yes	string	Github token with org:teams:read and repo:pull_requests:write permissions
github_slack_mapping	No	string	A JSON map of github usernames to Slack IDs. Used to filter out reviewers that are out of office based on Slack status.
slack_token	No	string	Required if you provide a value to github_slack_mapping

Outputs

Name	Description
reviewers	Space-delimited string of selected reviewer usernames

Using this action in your repository

name: Custom Reviewer Assignment

on:
  pull_request:
    types: ["labeled"]

jobs:
  assign-reviewers:
    runs-on: ubuntu-latest
    permissions:
      contents: read
    if: contains(github.event.pull_request.labels.*.name, 'request-review')
    outputs:
      reviewers: ${{ steps.external-reviewers.outputs.reviewers }} ${{ steps.internal-reviewers.outputs.reviewers }}

    steps:
      - uses: actions/checkout@v6

      - name: Generate GitHub App Token
        id: generate_token
        uses: actions/create-github-app-token@29824e69f54612133e76f7eaac726eef6c875baf # v2.2.1
        with:
          app-id: "2454947"
          private-key: ${{ secrets.OOI_PULL_REQUEST_APP }}

      - name: Select Internal Reviewers
        id: internal-reviewers
        uses: newjersey/innovation-shared-actions/.github/actions/pickaroo@main
        with:
          include_teams: "my-project-team"
          number_of_reviewers: 1
          token: ${{ steps.generate_token.outputs.token }}

      - name: Select External Reviewers
        id: external-reviewers
        uses: newjersey/innovation-shared-actions/.github/actions/pickaroo@main
        with:
          include_teams: "innovation-engineering"
          exclude_teams: "my-project-team"
          number_of_reviewers: 2
          token: ${{ steps.generate_token.outputs.token }}

  notify-slack:
    needs: assign-reviewers
    if: needs.assign-reviewers.outputs.reviewers != ''
    uses: newjersey/innovation-shared-actions/.github/workflows/slack.yml@main
    with:
      channel_id: "C09Q34G9HMX"
      message: "[ <${{ github.event.pull_request.html_url }}|PR Review> ] ${{ github.event.repository.name }} - #${{ github.event.pull_request.number }}: ${{ github.event.pull_request.title }}"
      thread_message: "Hey ${{ needs.assign-reviewers.outputs.reviewers }}! Please review the above pull request 🙏"
    secrets: inherit

References

• Pickaroo workflow
• Pickaroo action
• OOI Pull Request GitHub App
